A breaker that keeps tripping, lights that dip when the air conditioner starts, or plans for an EV charger can all point to your electrical panel. They don’t all point to the same fix. One home needs a circuit repaired, another needs more breaker space, and a third needs a larger electrical service from the utility.
This guide covers the most common signs you need an electrical panel upgrade, what each one usually means, and what to ask before you approve the work. If you are already budgeting, our guide to electrical panel upgrade cost in New Mexico covers pricing, permits, and PNM coordination.
If you see smoke, sparks, or flames, get out first. Call 911 from outside, and don’t open the panel or try to shut it off during an active hazard. The U.S. Fire Administration notes that residents may have less than two minutes to escape once a smoke alarm sounds.
Panel, Breaker, or Service: Know What Needs Fixing
The panel distributes power to your circuits. Each breaker protects one circuit. The service is the supply from the utility, including the meter, the service conductors, and the amperage your home is rated to draw.
Replacing the panel box alone does not add amperage. A service upgrade, such as moving from 100 to 200 amps, changes the meter equipment and usually involves the utility. A subpanel adds circuit space but no extra capacity. When you compare estimates, ask which of these the proposal actually fixes.
Older homes run into these limits most often. A 2026 Berkeley Lab study estimates that 100-amp panels make up 55% of U.S. single-family panels, compared with 29% for 200 amps. An earlier Berkeley Lab survey found homes built before 1960 were five to nine times more likely than post-2000 homes to have 100 amps or less.
Electrical Panel Warning Signs Worth a Closer Look
The Electrical Safety Foundation estimates that electrical malfunctions cause about 35,000 home fires each year.

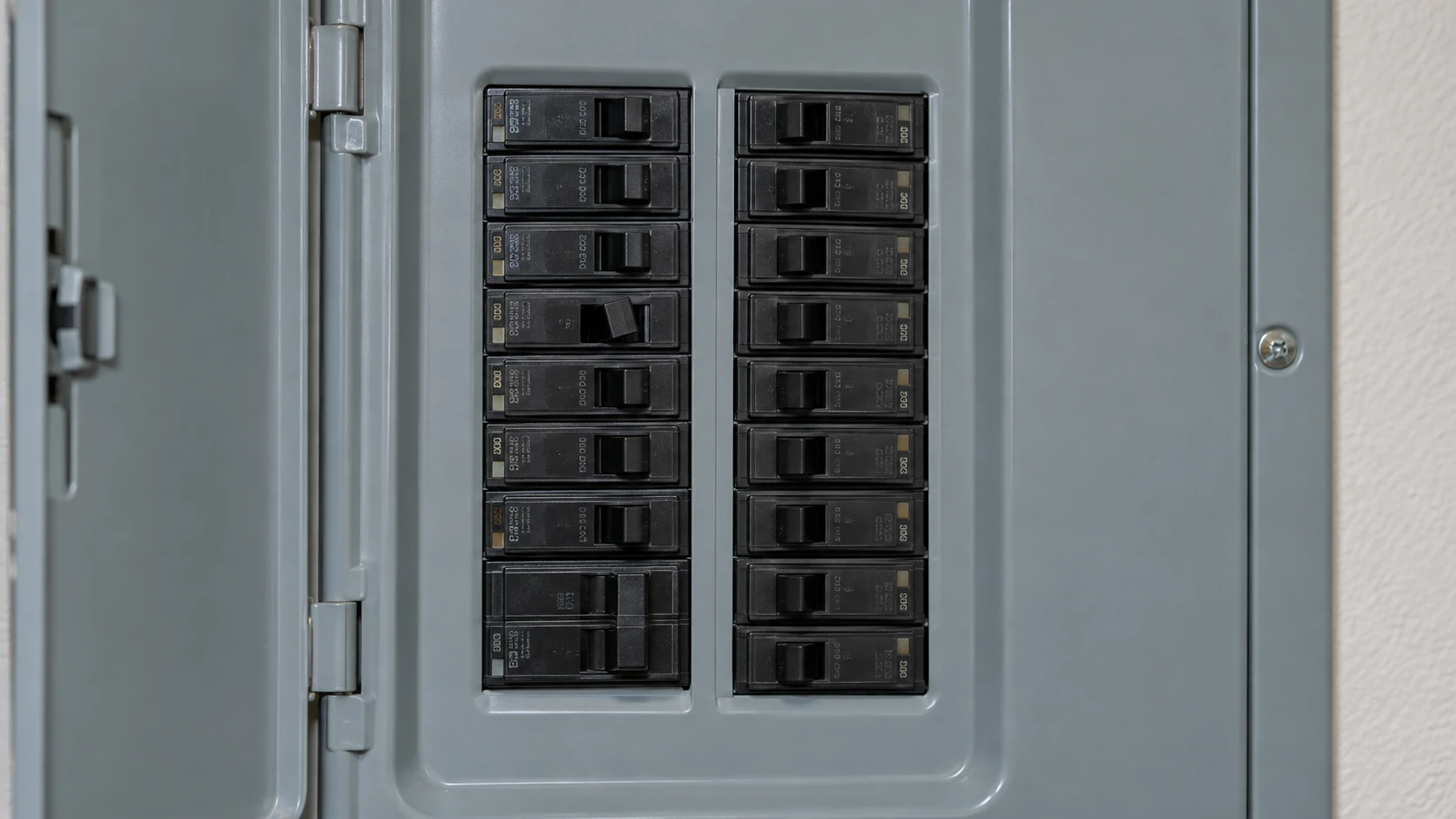

A Breaker Keeps Tripping
A trip means the breaker did its job. When the same breaker keeps tripping, the cause may be circuit overload, a failing appliance, or a wiring fault. GFCI and AFCI breakers also trip on ground faults and arcing, as ESFI’s breaker guide explains.
Note what was running and which rooms lost power. A space heater and a microwave sharing one kitchen circuit tells an electrician something very different from trips in several rooms at once.
Don’t keep resetting a breaker that trips again right away. Never swap in a higher-rated breaker to stop the trips, because the breaker has to match the wire it protects.
Lights Dim or Flicker When Big Equipment Starts
ESFI lists dimming lights when other devices turn on as a sign of an overloaded system. During an Albuquerque summer, watch whether lights dip each time the refrigerated air cycles on, or, in homes on a private well, when the pump starts.
One flickering fixture usually points to the fixture or its connection. Dimming across several rooms points to the circuit, the panel, or the incoming supply. A panel upgrade won’t fix a loose fixture or a utility-side problem, so have the cause found first.
Buzzing, Heat, a Burning Smell, or Scorch Marks
The CPSC Guide to Home Wiring Hazards flags sizzling or buzzing sounds, parts that are hot to the touch, and the smell of hot insulation.
Don’t remove the panel cover or touch equipment to check its temperature. Stop using whatever is affected and get it inspected promptly rather than waiting for the next remodel.
Water or Corrosion In or Around the Panel
Monsoon storms, a roof leak, a leaking water heater, or a cooler line dripping down an exterior wall can all put water near electrical equipment. Don’t open or touch a wet panel, and don’t assume it is safe once the outside dries.
NEMA publishes criteria for deciding whether water-damaged equipment can safely return to service. Then fix the water source, whether that means roof repair or plumbing work, so new equipment isn’t exposed to the same problem.
Old Equipment With No Safe Repair Path
Fuse boxes, panels with no approved replacement breakers, and DIY changes such as two wires under one breaker screw are the equipment problems most likely to justify replacement. Among the signs you need an electrical panel upgrade, a documented equipment limitation carries far more weight than the panel’s age. Ask for the make, model, and condition, and whether listed replacement parts still exist. A breaker that physically fits is not automatically approved for that panel.
More Appliances Can Change the Capacity Question
Electrical panel capacity depends on the service rating and the calculated household load, not on how many empty slots you have. New load is one of the easiest signs you need an electrical panel upgrade to miss, because nothing looks wrong. A home with no faults still needs a review before a large new appliance goes in.
Common additions in New Mexico homes include:
An EV charger, which PNM offers rebates for when you use a qualified charger and a licensed electrician
A switch from an evaporative cooler to refrigerated air or a heat pump
An induction range, electric water heater, or garage workshop
Here is what that means in numbers. The Alternative Fuels Data Center says most residential Level 2 EV chargers run at up to 30 amps and need a dedicated 40-amp circuit. A DOE-funded panel guide notes that electricians recommend keeping load under 80% of service capacity. On a 100-amp service, that leaves about 80 amps of working room. A charger pulling 30 amps for hours uses more than a third of it before the range, dryer, or air conditioner comes on.
Space runs out too. Berkeley Lab estimates that at least 20% of panels of every size have no free breaker space.
The Department of Energy’s Building America electrical panel calculator shows how appliance wattage and panel amperage interact, based on NEC Article 220.83.
Don’t add up breaker numbers to size your service, because that isn’t a load calculation. Share nameplate ratings for the equipment you plan to add instead.
Some homes can avoid a service upgrade entirely. Schneider Electric, a panel manufacturer, says smart panel load shifting can help prevent the need for a service-level upgrade in some homes. That option needs professional design, and it can’t make damaged equipment safe.
Plan a Panel Upgrade for Home Remodeling Early
Bring up electrical needs while the remodeling scope is still on paper, before appliances are bought and drywall goes up. Moving a kitchen, adding a bathroom, converting a garage, or building an addition can change circuit layout even when service capacity is fine.
Illustrative example: A Rio Rancho homeowner plans an induction range this year and an EV charger next year. Reviewing both together lets the electrician size the work once, before the kitchen is finished.
A panel upgrade for home remodeling should come from that load review, not an automatic line item.
Signs You Need an Electrical Panel Upgrade vs. a Targeted Repair
Use this table to match what you see with the fix it usually leads to.
|
What you notice |
Often points to |
Likely next step |
|---|---|---|
|
One breaker trips when one appliance runs |
Circuit overload or appliance fault |
Dedicated circuit or appliance repair |
|
Trips or dimming across several rooms |
Heavy load on the panel or service, or a supply issue |
Load calculation; possible service upgrade |
|
No space for new breakers |
Panel space |
Panel replacement or subpanel |
|
Planned EV charger, heat pump, or addition |
Service capacity |
Load calculation before you buy |
|
Heat, burning smell, scorching, or water |
Damaged equipment |
Urgent professional assessment |
What to Ask Before You Approve the Work
Ask for a written scope that answers:
What is my current service size, and what is the calculated load with the appliances I plan to add?
Is this panel work, a service upgrade, or both, and which equipment changes?
Would a dedicated circuit, subpanel, or load management solve it for less? If not, why not?
Who pulls the permit, books the inspection, and files the utility application?
How long will the power be off on installation day?
In New Mexico, electrical work falls under the Construction Industries Division’s Electrical Bureau. You can verify a contractor’s license through the CID before signing.
If your home is on PNM, its service upgrade process runs through application, review, design, construction, inspection, and connection. You need permit approval from the electrical authority before PNM inspects the service and turns power back on. Homes outside PNM territory, such as Las Cruces or areas served by rural cooperatives, follow their own utility’s process, so confirm timing and outage plans before booking a date.
Get an Assessment Tied to Your Home
The signs you need an electrical panel upgrade tell you to investigate, not what to buy. Before you call, write down which breaker trips and what was running, any heat, smell, or water you’ve noticed, and the model numbers of anything you plan to add. That list turns a general visit into a quick diagnosis.
Happy Homes LLP works with homeowners across Albuquerque, Rio Rancho, Santa Fe, and the East Mountains. Book troubleshooting or remodel planning through our electrical services page, and ask for the findings and scope in writing.
